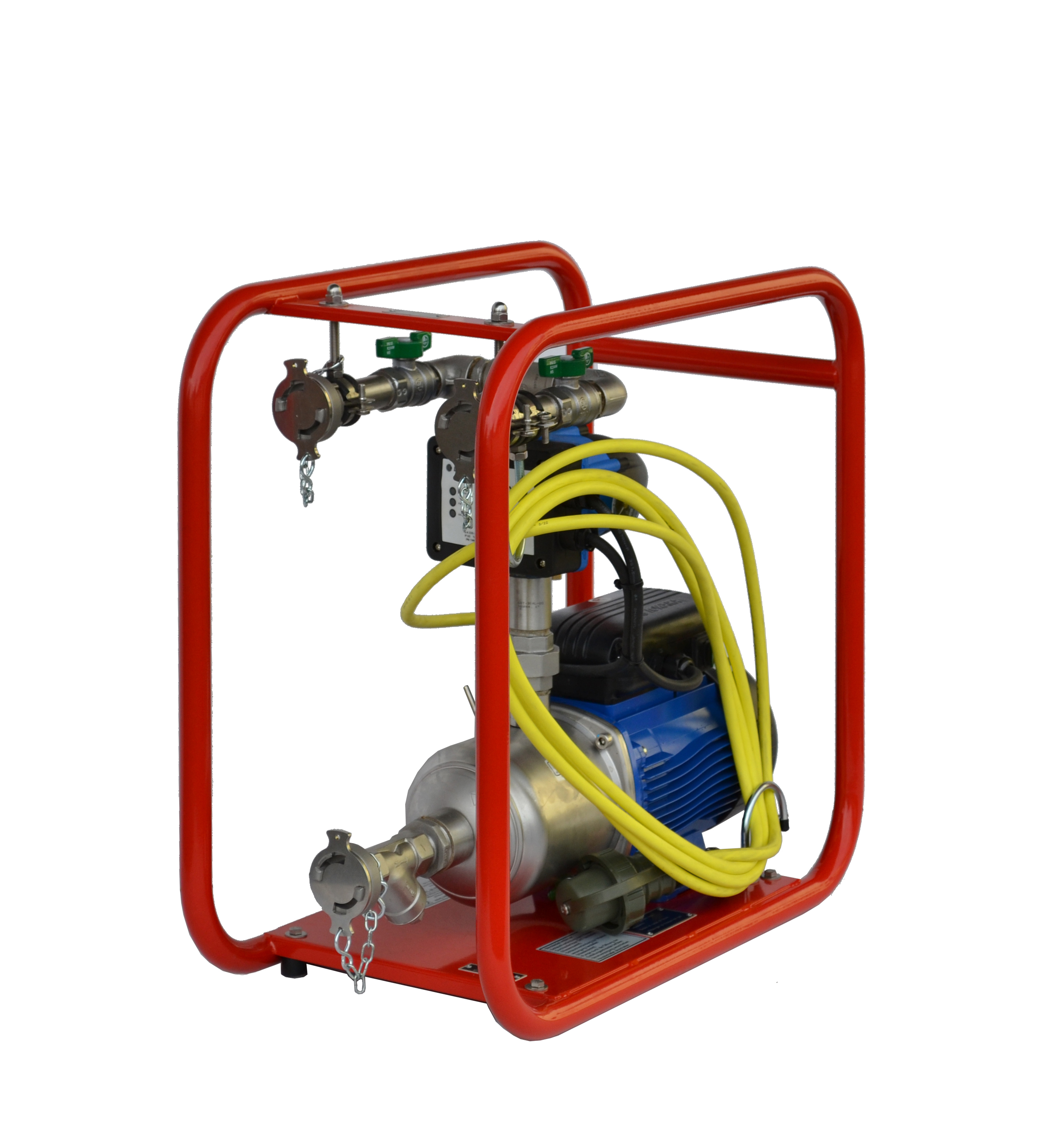

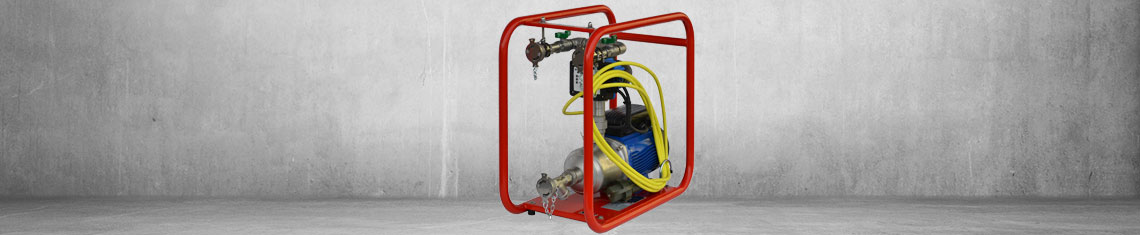

Water Supply Pump AquaMobil® VP

The VP pump can be connected to the water flow heaters DH7 and DH5. The pump is required for a non-pressurized supply of water from water tanks or from natural waters, and for water supply from the public water network when the network pressure is below 4 bar. The pump is suitable for drinking water.

Technical data
(Approximate values)
Centrifugal pump, protection class IP55
Pressure control
Automatic hydro control ON at 2.5 bar / OFF at 4.5 bar
60 x 30 x 55 cm
27 kg
Power consumption
1.5 kW
Supply voltage
230 V/50 Hz or 110 V/60 Hz
Maximum 5000 l/hour, pressure max. 5 bar
Main plug
waterproof, protection class IP67
Water connections
water inlet: one fixed D-coupling, stainless steel
water outlets: two fixed D-couplings, stainless steel
RAL 3000, fire red (other RAL colours on request)
Optional Accessories
Filling assembly

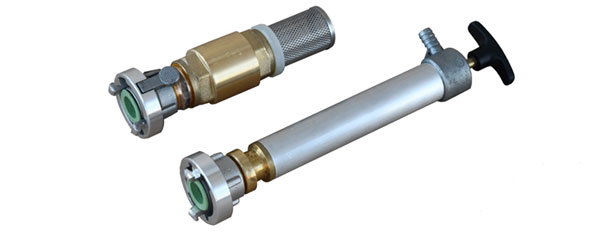

Non-return valve with strainer and hand-operated filling pump
