swingfog®

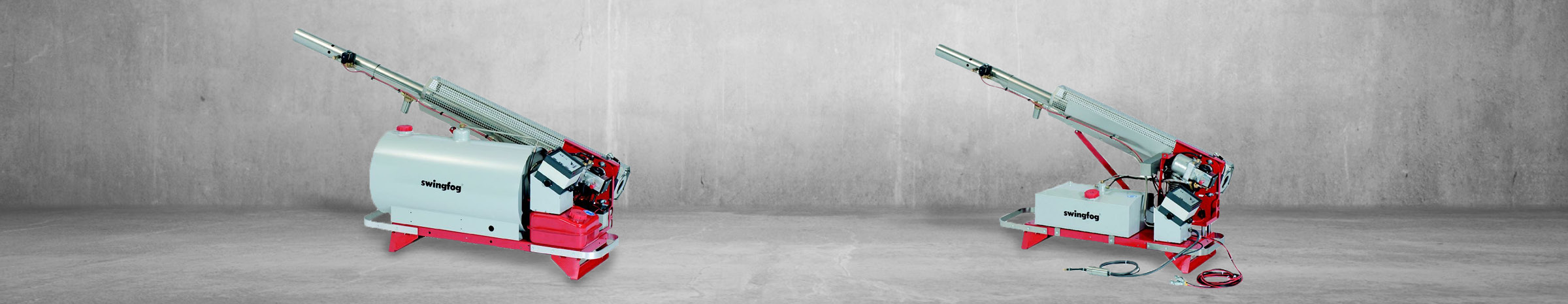

SN 101

Stationary or mobile operation.

All swingfog® SN 101 models are always equipped with an automatic cut-off device for the fog liquid.

Types SN 101 M and SN 101 E are supplied with an integrated stainless steel fog liquid tank with a capacity of 69 l.

The swingfog® SN 101 Pump does not have an integrated fog liquid tank. The fog liquid is conveyed electrically from a separate tank by a stainless steel pump.

For this device we offer several optional stainless steel or polyethylene tanks for the fog liquid with different capacities.

These tanks are equipped with a quick coupling for connecting the solution line as well as with a ventilation at the tank cap.

A drain hose with quick coupling and ball valve is also included.

The swingfog® SN 101 Pump has a stainless steel petrol tank with a capacity of 21.3 litres. This petrol quantity allows permanent operation of approx. 5 hours.

The models SN 101 E and SN 101 Pump are started and controlled electrically. For mobile operation, power is supplied by connecting the machines to the 12 V battery of the vehicle or, for stationary operation by connecting the machines to a separate 12 V vehicle battery. The swingfog® SN 101 M is started manually via a built-in air pump. The power for starting and operation is supplied by eight dry cell batteries with a capacity of 1.5 V each.

Technical data

(Approximate values)

Dimensions

177 x 63 x 55 cm (SN 101 M)
177 x 58 x 56 cm (SN 101 E)
177 x 56 x 50 cm (SN 101 Pump)

Empty weight

40 kg

Fog liquid tank

69 l stainless steel (SN 101 M, SN 101 E)

Petrol tank

5.6 l stainless steel (SN 101 M, SN 101 E)
21.3 l stainless steel (SN 101 Pump)

Petrol consumption

4.5 l/h, unleaded or leaded

Power

42.1 kW / 57.3 hp (36200 kcal/h)

Output (measured with water)

32 l/h up to 120 l/h (SN 101 M, SN 101 E)
30 l/h up to 128 l/h (SN 101 Pump), depending on the dosing nozzle used

Outfit

Automatic cut-off device for the fog liquid

All SN 101 models are equipped with an electromagnetic automatic cut-off device for the fog liquid.

Optional Accessories

Patented high-performance fog tube, specially designed for the application of water-based fog liquids

Water-based fog liquids with output volumes of up to 67 l/h are discharged in an optimal droplet spectrum. Such a good droplet spectrum at high output quantities can otherwise only be achieved with oily fog liquids.

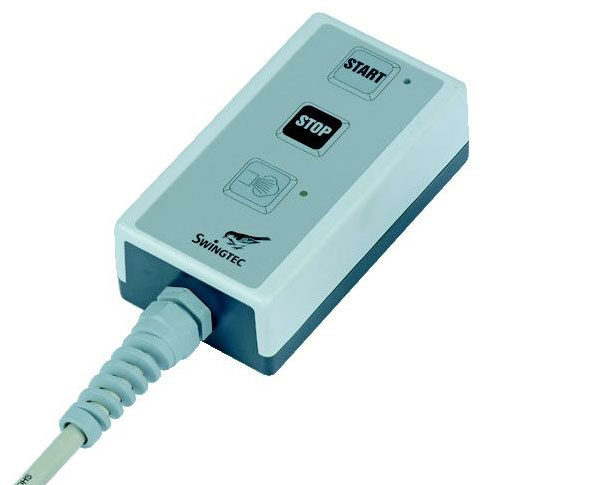

Remote control swingfog® SN 101 E and SN 101 Pump

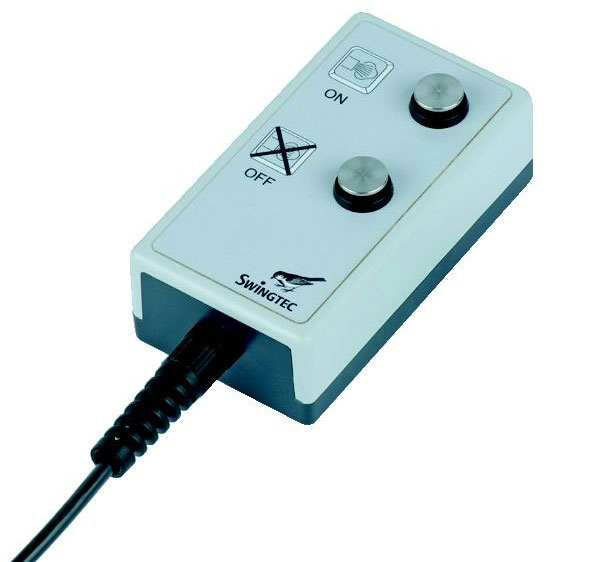

Remote control swingfog® SN 101 M

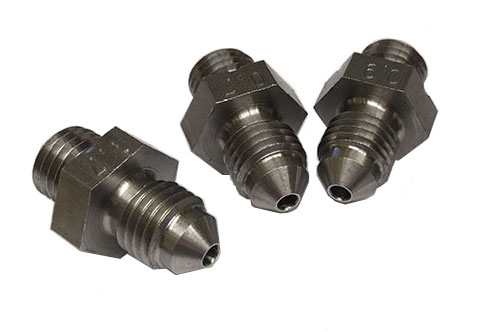

Special dosing nozzles

2.2/3.0/4.0

Fog liquid tanks swingfog® SN 101 Pump

80 l polyethylene

150 l polyethylene

69 l stainless steel

Examples of separate tanks Tanks with capacities of 80 l, 150 l, 300 l, 500 l (polyethylene) and 69 l (stainless steel) are available. The tanks are equipped with a quick-coupling for connecting the solution line as well as with a ventilation at the tank cap. A drain hose with quick coupling and ball valve is also included.

Downloads

Datasheet SN101

swingfog® brochure

Areas of application

Pest- and mosquito control

Storage

Livestock disinfection
