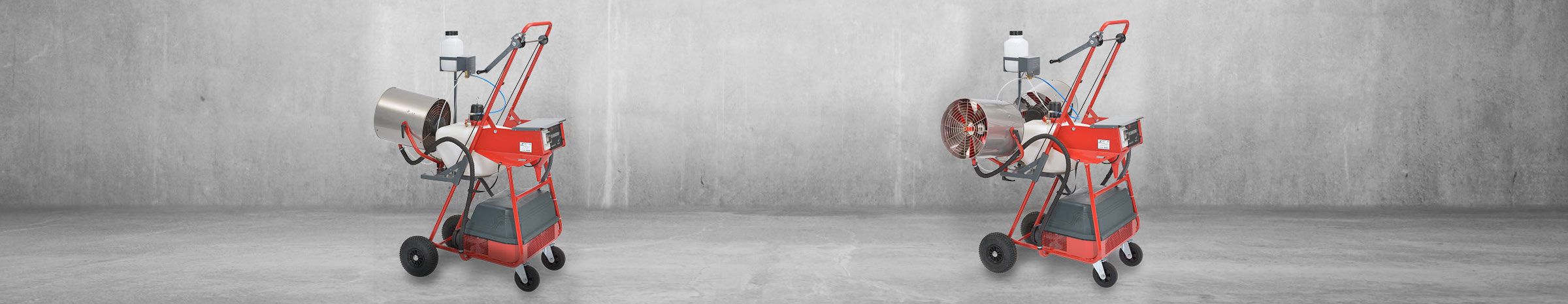

fontan® Turbostar / fontan® Twinstar

Electrically driven ULV cold fog aerosol applicators, on wheels

Our fontan® Turbostar and fontan® Twinstar devices are used indoors. They are programmable and work full automatic without supervision.

The stator in the ventilator tube developed in a wind tunnel by Swingtec® allows the treatment of large surfaces/rooms from one position, without moving the device.

With the stator, a uniform horizontal and vertical droplet distribution over an area of 60 x 40 m per ventilator is achieved.

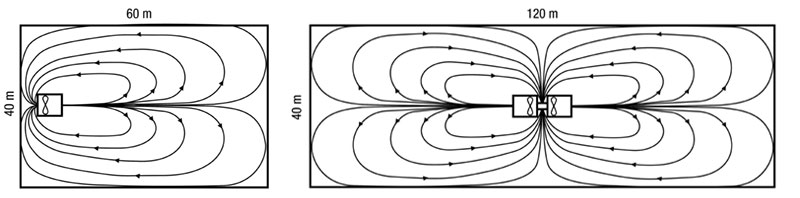

Droplet distribution fontan® Turbostar / fontan® Twinstar

Significantly larger areas/rooms can be treated when additional fans are installed.

The low-pressure system of 0.35 bar permits the use of nozzles with relatively large diameters, which means that also suspended powder preparations can be easily discharged.

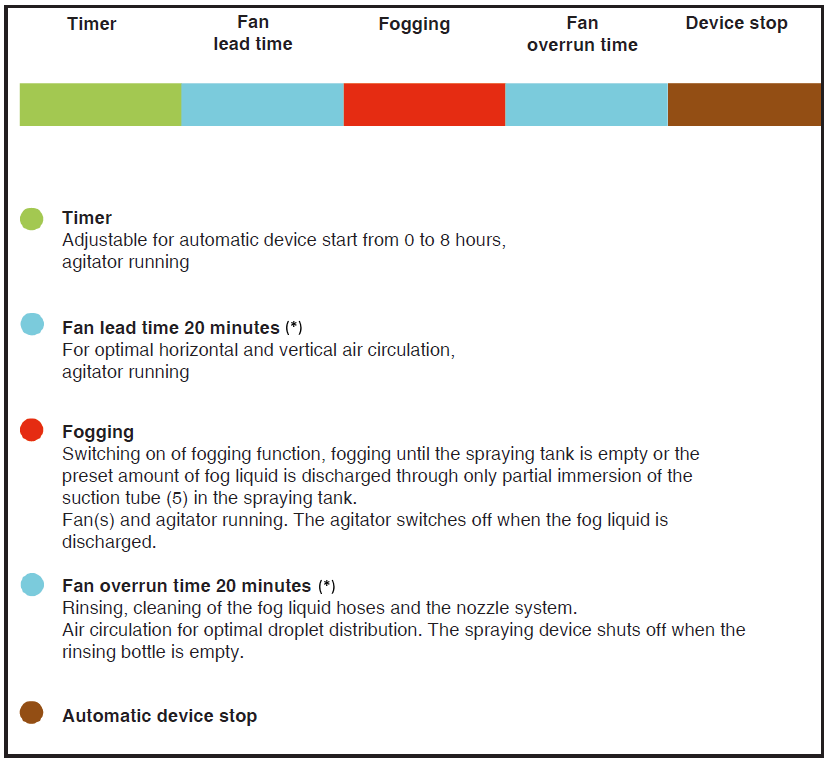

Fully automatic program run

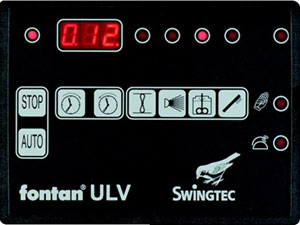

Programming and control unit fontan® Turbostar and fontan® Twinstar with fully automatic function run


(*) The fan lead time and overrun time can be changed individually All functions are indicated by LEDs and can also be operated manually.

Technical data
(Approximate values)
115 x 69 x 162 cm (fontan® Turbostar), 115 x 86 x 162 cm (fontan® Twinstar)
Empty weight
83 kg (fontan® Turbostar), 98 kg (fontan® Twinstar)
Ventilator with stator
Air flow 4850 m³/h (fontan® Turbostar)
2 x 4850 m³/h (fontan ® Twinstar)
0.75 kW single phase AC (fontan® Turbostar)
1.5 kW three-phase (fontan® Twinstar)
Agitator in fog liquid tank
24 V DC motor (function can be switched off)
Fog liquid tank
34 l, polyethylene
Rinsing bottle
2.5 l, polyethylene
Output (measured with water)
3.6 l/h to 11.4 l/h (fontan® Turbostar)
7.2 l/h to 22.8 l/h (fontan® Twinstar) depending on the dosing nozzle used
The volume median diameter (VMD) for all standard dosing nozzles (stainless steel) is < 30 μm.
Optional Accessories
Special dosing nozzles, stainless steel
100 and 120
